LED Strip Connector Cable

Find the right LED strip connector cable for your lighting project. Explore 2-pin and 4-pin options for SMD and COB strips, with specifications matched to your application.

Fast Shipping

12-Hour Quote Response

Engineering Team Support

Explore the Benefits of LED Strip Connector Cables

Explore how LED strip connector cables can simplify installation and make your lighting layout easier to manage. With solderless connections and customizable cable configurations, you can select a connection solution around the way your lighting system is built.

Solderless Clips

Prewired, solderless connector cables reduce the steps needed to connect an LED strip to its wiring. They make installation faster where soldering would add tools and labor

Options for Single-Color and RGB Strips

DelightFire offers 2-pin connectors for single-color LED strips and 4-pin options for RGB strips. We match the pin count, strip width, and electrical requirements before ordering.

Connections for SMD and COB Strips

Choose from connector cable options designed for SMD or COB LED strips. Matching the connector format to the strip construction helps reduce fit problems during assembly.

Flexible Routing Around Your Layout

The wire section can bridge gaps between the LED strip and its connection point. This gives you more room to route wiring around corners or through confined installation spaces.

Cleaner, Easier-to-Check Wiring

Prewired connector cables keep connection points more organized than loose wiring completed on site. Defined conductor colors make the finished assembly easier to identify and inspect.

Built Around Your Project

DelightFire can build LED strip connector cables around your required connector format, strip width, wire gauge, length, color, and installation conditions.

Explore Various Types of LED Strip Connector Cables

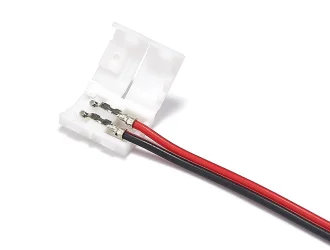

2 Pin LED Strip Connector Cables

All Products

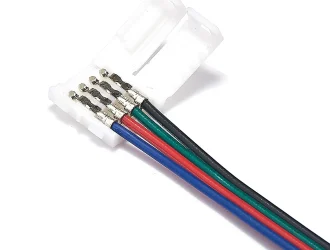

4 Pin LED Strip Connector Cables

All Products

Custom LED Strip Connector Cables

All Products

Trusted By Brands

“Choice of World-Renowned Brands”

LED Strip Connector Cable Specification

Specification	Available Options
Pin Options	2-pin for single-color LED strips and 4-pin for RGB LED strips
LED Strip Width	5 mm, 6 mm, 8 mm, 10 mm, or 12 mm, depending on the strip and connector type
Compatible LED Strips	SMD and COB LED strips
Connection Format	Preassembled LED strip-to-wire connection
Wire Materials	Tinned copper conductor with PVC insulation

Specification	Available Options
Wire Gauge Range	18 AWG to 24 AWG

Length and Color	The length and color of the light strip can be customized according to your application.
Connector Format	Straight, right-angle, T-shaped, or other available connector formats
Additional Components	Low-voltage switches or other approved components
Packaging	Custom labeling and packaging based on order requirements

Solderless Connections for Easier Installation

Want to connect your LED strip without adding a soldering step? A solderless connector cable combines the connector and wire lead in one ready-to-connect part. You can use it to extend a strip or connect it to a compatible controller, power lead, or another section of lighting with less on-site preparation.

You still need to align the contacts and polarity before closing the connector. Choose 2-pin for a compatible single-color strip or 4-pin for a compatible RGB strip. Once you have the correct connector, you can route the cable through cabinets, displays, light boxes, and other compact lighting layouts.

A Connector Cable Matched to Your LED Strip

To choose the right LED strip connector cable, you need to check the pin count, strip width, and exposed contact pads. The pin count must match your strip circuit, the connector opening must fit the strip width, and the contacts inside the connector must line up with the copper pads.

Your cable specifications matter as well. Select the wire gauge and length around your operating current, cable run, and allowable voltage drop. You can also define the wire colors, channel sequence, and a straight, right-angle, or T-shaped connector format to suit your layout.

Have a strip specification, photo, or sample? Send it to DelightFire before sampling. Our engineers can review these details with you and confirm the connector fit, helping you reduce the risk of size mismatch or poor electrical contact.

Get a Custom LED Strip Connector Cable Solution Today!

Tell us your project needs, and our team will get back to you within 24 hours

Why DelightFire

Why Choose DelightFire's LED Strip Connector Cables

Need an LED strip connector cable that fits your strip and stays consistent across orders? DelightFire reviews your requirements, supports sampling and small-batch production, and provides after-sales support.

Connector Cables Matched to Your LED Strip

You can customize LED strip connector cables to meet your applications, with pin counts, wire gauge, strip length, color, etc. Our knowledgeable team will provide a tailored solution for your needs.

Quality Control for Batch Production

DelightFire operates under an ISO 9001 quality management system. Your approved sample and specifications guide applicable inspections and repeat production.

Technical Guidance and After-Sales Support

Need help before or after delivery? You can get technical guidance during specification review and after-sales support, including warranty service.

One-Stop Project Support

With DelightFire, you can manage project design, sampling, manufacturing, inspection, packaging, shipping, and order tracking through one supplier. That gives your team fewer handoffs to manage.

Testimonials

What Customers Say About DelightFire's LED Strip Connector Cables

See how customers work with DelightFire to confirm LED strip connector cable details, test samples, and keep batch orders on specification.

Jonas Weber

Germany

“We needed a 2-pin cable for a lighting project, but we weren’t sure about the strip width. DelightFire checked our photo and dimensions, then prepared a sample. It fit properly, so moving to the full order was straightforward.”

Rating:

Megan Collins

United States

“Our RGB display had very little space behind the panel, so a standard 4-pin cable wasn’t a good fit. We sent DelightFire a sketch and requested a different cable length. The sample matched what we needed, and the wiring was easy for our installers to follow.”

Rating:

Marco Bianchi

Italy

“We’ve ordered LED strip connector cables for several bar and retail projects. DelightFire keeps the approved connector and cable details clear, which makes repeat ordering much easier. When we had a question about one installation, the team replied quickly and helped us check the specification.”

Rating:

We are fixera

Delve Deeper Into
DelightFire Blog

Explore clear and professional articles to help you choose the right wire type, prepare a custom project, and avoid common sourcing mistakes.

September 30, 2026

UL2464 Cable Standard Data Sheet

September 8, 2026

Types of Copper Wire Full Guide

FAQs About LED Strip Connector Cables

What Is the Difference Between a 2-Pin and 4-Pin LED Strip Connector Cable?

A 2-pin LED strip connector cable is commonly used with single-color LED strips, while a 4-pin cable is commonly used with RGB strips. You should still confirm the strip width, voltage, current, and connector design. Matching the pin count alone does not confirm compatibility.

Can I Use the Same Connector Cable for SMD and COB LED Strips?

Not automatically. SMD and COB strips may use different connector housings and contact arrangements, even when they have the same pin count and width. You should choose a cable designed for your strip construction and check that its contacts align with the copper pads before placing an order.

Can an LED Strip Extension Cable Affect Brightness?

Yes. An LED strip extension cable can contribute to voltage drop when the cable is too long, the current is high, or the conductor is too small for the load. You should confirm the system voltage, current, total cable length, conductor size, and allowable voltage drop before selecting the cable.

Can I Use an LED Strip Connector Cable With a Waterproof Strip?

It depends on the connector and the strip coating. A standard clip may not reach the contact pads through silicone or another waterproof layer. You may need a connector designed for coated strips. For outdoor use, verify the protection level of the complete connection.

Can DelightFire Customize an LED Strip Connector Cable?

Yes. Depending on your project, you can specify a 2-pin or 4-pin design, connector type, strip width, conductor size, cable length, color, and connector configuration. Send your requirements, drawing, photo, or sample so DelightFire can review the combination before sampling and quotation.

What Testing or Compliance Documents Can I Request?

The available tests and documents depend on the cable construction and your order requirements. Tell DelightFire which market, approval, and acceptance criteria apply to your project. Depending on the approved inspection plan, you may request relevant electrical, dimensional, wiring, pull-force, or visual checks and the applicable supporting documents.

Can I Request Samples, and What Are the MOQ and Lead Time?

Yes, you can request a prototype before bulk production. Published planning figures indicate no prototype minimum, a typical prototype lead time of 3–5 days, a 100-piece starting MOQ for bulk orders, and a typical bulk lead time of 1–2 weeks. Your current quotation will confirm the final quantity, price, and schedule.
